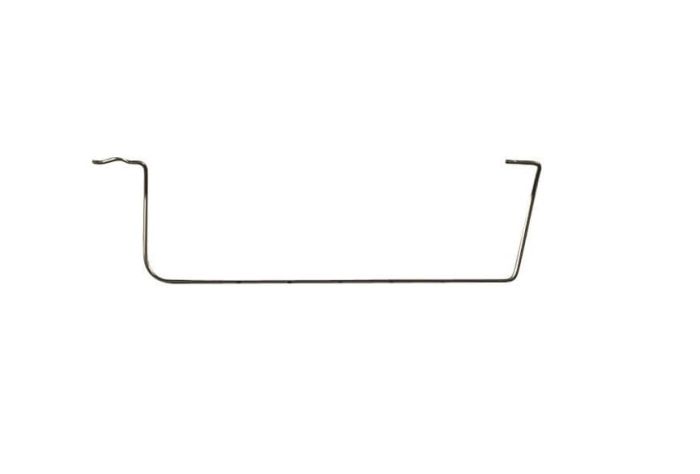

main product photo

Whirlpool W11285509 Ice Maker Shut Off Arm for Refrigerator

Be the first to review this product
In stock
SKU
W11285509
Brand
Whirlpool
Whirlpool
Special Price $80.17 Regular Price $120.84
Ship to CACalculate Shipping Cost
Quick Overview
The Whirlpool W11285509 Refrigerator Ice Maker Shut Off Arm senses the ice level in the bin and automatically signals to the part to stop making ice. It is set up in the assembly of compatible machines and operates as the level rises, turning off when the bin is full. Its purpose in the system is to prevent overfilling, to prevent overflow into the storage area and to ensure that it is cycled on/off properly. It is a mechanical control part that aids in maintaining the proper ice production and storage balance during normal cooling applications.

This Part Fits the Following Models (50)

Amana AFD2535DEB6 Bottom-Mount Refrigerator Amana AFD2535DEB7 Bottom-Mount Refrigerator Amana AFD2535DEB8 Bottom-Mount Refrigerator Amana AFD2535DEQ6 Bottom-Mount Refrigerator Amana AFD2535DEW6 Bottom-Mount Refrigerator Amana AFD2535DEW7 Bottom-Mount Refrigerator Amana AFD2535DEW8 Bottom-Mount Refrigerator Amana AFD2535FES5 Bottom-Mount Refrigerator Amana AFD2535FES6 Bottom-Mount Refrigerator Amana AFD2535FES7 Bottom-Mount Refrigerator Amana AFD2535FES8 Bottom-Mount Refrigerator Amana AFD2535FES9 Bottom-Mount Refrigerator Amana AFF2534FEB3 Bottom-Mount Refrigerator Amana AFF2534FEB4 Bottom-Mount Refrigerator Amana AFF2534FEB5 Bottom-Mount Refrigerator
Showing 1-15 of 50
0
Rating:
0% of 100
Reviews
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Customer Questions
What does the Whirlpool W11285509 Ice Maker Shut Off Arm for Refrigerator do?

The Whirlpool Ice Maker Shut Off Arm for Refrigerator detects the ice level and signals the ice maker to stop producing cubes when the bin becomes full.

How does the shut off arm respond as the ice bin fills?

As the stored ice rises, the mechanical arm moves with the level and triggers the shutoff function once the bin reaches capacity.

Which refrigerators are compatible with this Whirlpool W11285509 ice maker arm?

Applications include Amana AFF2534FEW4, Amana AFF2534FEW5, Jenn-Air JBD2286KEB3, Jenn-Air JBL2088WEM0, and Jenn-Air JBL2088WEM1 refrigerators.

Where is the Ice Maker Shut Off Arm installed?

The arm is fitted within the ice maker assembly of compatible refrigerators, where it monitors the amount of ice in the storage bin.

Why is an ice maker shut off arm needed?

It assists to prevent excessive ice production, reducing the chance of overflow into the storage area during normal operation.

When might the ice maker arm require replacement?

Replacement may be considered if the existing arm no longer responds correctly to the ice level or fails to stop production when the bin is full.

Is the Whirlpool W11285509 Ice Maker Shut Off Arm for Refrigerator an OEM replacement part?

Yes. The Whirlpool W11285509 Ice Maker Shut Off Arm for Refrigerator is an OEM replacement part.

How soon can I receive the Whirlpool W11285509 Ice Maker Shut Off Arm for Refrigerator?

The Whirlpool W11285509 Ice Maker Shut Off Arm for Refrigerator ships via Ground, with an estimated delivery time of 5–7 business days.
