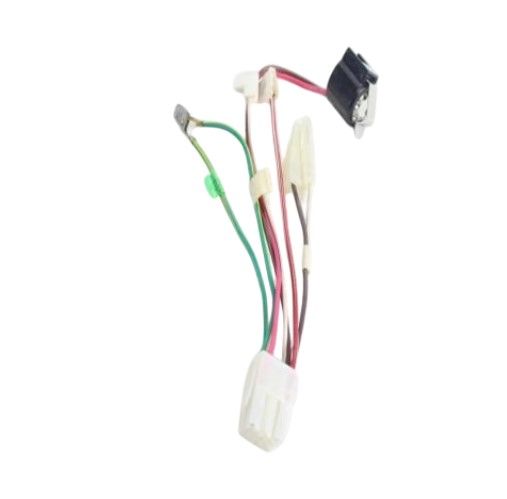

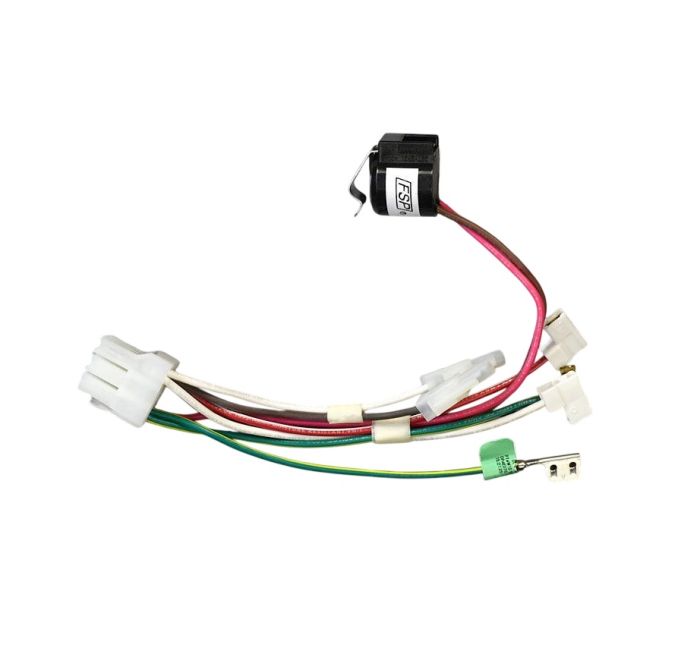

Whirlpool W11234406 Wire Harness for Refrigerator

Be the first to review this product
In stock
SKU
W11234406
Brand
Whirlpool
Whirlpool
Special Price $69.80 Regular Price $90.94
Ship to CACalculate Shipping Cost
Quick Overview
The Whirlpool W11234406 Wire Harness distributes electrical power and communication signals between the refrigerator's electronic components enabling coordinated operation of multiple systems. It consists of insulated wires and installed connectors that create secure electrical connections between controls sensors, motors, lighting, and other internal assemblies. Routed through designated channels within the appliance cabinet, it connects directly to components without altering their position or function. Proper wiring maintains accurate electrical continuity, supports signal transmission, reduces the risk of connection interruptions & ensures consistent performance of the electrical systems.

This Part Fits the Following Models (50)

Amana ASD2520WRB00 Side-By-Side Refrigerator Amana ASD2520WRW00 Side-By-Side Refrigerator Amana ASD2522VRB01 Side-By-Side Refrigerator Amana ASD2522VRD01 Side-By-Side Refrigerator Amana ASD2522VRS01 Side-By-Side Refrigerator Amana ASD2522VRW01 Side-By-Side Refrigerator Amana ASD2522WRB01 Side-By-Side Refrigerator Amana ASD2522WRB02 Side-By-Side Refrigerator Amana ASD2522WRD01 Side-By-Side Refrigerator Amana ASD2522WRD02 Side-By-Side Refrigerator Amana ASD2522WRS01 Side-By-Side Refrigerator Amana ASD2522WRS02 Side-By-Side Refrigerator Amana ASD2522WRW01 Side-By-Side Refrigerator Amana ASD2522WRW02 Side-By-Side Refrigerator Amana ASD2523WRB00 Side-By-Side Refrigerator
Showing 1-15 of 50
0
Rating:
0% of 100
Reviews
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Customer Questions
What does the Whirlpool W11234406 Wire Harness do?

The Wire Harness distributes electrical power and communication signals between the refrigerator’s electronic components, supporting coordinated operation of multiple systems.

How does the Wire Harness maintain electrical connections?

Its insulated wires and connectors create secure connections between internal components, maintaining electrical continuity and supporting signal transmission.

Where is the Whirlpool Wire Harness routed?

The harness is routed through channels within the refrigerator cabinet and connects directly to the applicable internal components.

Can a wire harness affect communication between refrigerator components?

Yes. The Wire Harness carries communication signals between electronic components, so proper wiring supports consistent signal transmission across connected systems.

What can proper wiring continuity support in a refrigerator?

Proper wiring continuity supports reliable power distribution and signal transmission while reducing the risk of connection interruptions in electrical systems.

Which refrigerators are compatible with Whirlpool W11234406?

The Wire Harness is compatible with Amana ASD2520WRB00, Crosley CS22AEXHW01, Crosley CS22CFXTS01, and Crosley CS25AEXHN00 side-by-side refrigerators.

Does the Wire Harness change the position or function of connected components?

No. The harness connects directly to the internal components without altering their position or intended function.

Is the Whirlpool W11234406 Wire Harness an OEM replacement part?

Yes. The Whirlpool Wire Harness is an OEM replacement part for compatible Amana and Crosley refrigerator models.

What is the expected arrival period for the Whirlpool W11234406 Wire Harness for Refrigerator?

The Whirlpool Wire Harness ships by Ground, and the estimated delivery window is 5–7 business days.
