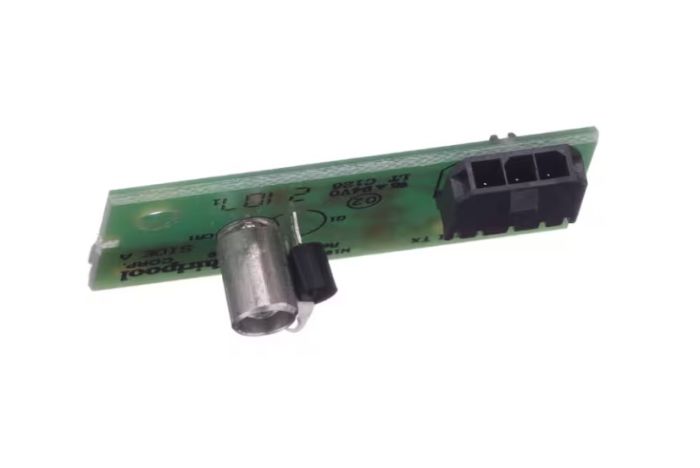

main product photo

Whirlpool W10870822 Emitter Control Board for Refrigerator

Be the first to review this product
In stock
SKU
W10870822
Brand
Whirlpool
Whirlpool
Special Price $180.77 Regular Price $255.94
Ship to CACalculate Shipping Cost
Quick Overview
The Whirlpool W10870822 Emitter Control Board is a component of the refrigerator's ice maker system that connects to the ice bin's receiver board to monitor the ice level. It transmits signals through an infrared emitter. When ice builds up in the bin and blocks the signal from reaching the receiver board, the ice maker automatically stops to avoid overflow. A malfunctioning emitter control board can lead to various issues with the ice maker, such as overfilling the ice bin, which may jam the dispenser mechanism. In severe cases, a defective board could also stop the ice maker from producing ice altogether.

This Part Fits the Following Models (50)

IKEA 6ISC20C6AY00 Refrigerator IKEA ISC23CDEXB00 Refrigerator IKEA ISC23CDEXB01 Refrigerator IKEA ISC23CDEXY00 Refrigerator IKEA ISC23CDEXY01 Refrigerator IKEA ISC23CDEXY02 Refrigerator IKEA ISC23CNEXW00 Refrigerator IKEA ISC23CNEXW01 Refrigerator IKEA ISC23CNEXY00 Refrigerator IKEA ISC23CNEXY01 Refrigerator IKEA ISC23CNEXY02 Refrigerator IKEA IX7DDEXDSM00 Refrigerator IKEA IX7DDEXDSM01 Refrigerator IKEA IX7DDEXDSM02 Refrigerator Jenn-Air JFX2897DRM00 Bottom-Mount Refrigerator
Showing 1-15 of 50
0
Rating:
0% of 100
Reviews
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Customer Questions
What ice-level function does the Whirlpool Emitter Control Board perform?

The emitter control board uses an infrared signal with the receiver board in the ice bin to monitor the ice level and control when ice production should stop.

What causes the emitter and receiver boards to stop the ice-making cycle?

As ice rises in the bin, it eventually blocks the infrared signal between the emitter and receiver boards. The ice maker then stops producing ice to help prevent the bin from overflowing.

Which refrigerator models are designated for the Whirlpool W10870822 Emitter Control Board?

The listed compatible models are IX7DDEXDSM02, ISC23CDEXB00, 6ISC20C6AY00, and JFX2897DRM00. Verify your refrigerator's complete model number against this list before ordering.

What ice-making problems can result when the Whirlpool emitter board fails?

A defective board can interfere with ice-level detection, potentially causing the ice bin to overfill or preventing the ice maker from producing ice altogether.

How could a faulty W10870822 contribute to an ice dispenser jam?

Yes. If the emitter board fails to detect the ice level correctly, continued ice production can overfill the bin, which may contribute to the dispenser mechanism becoming jammed.

What should be verified if the ice maker stops producing ice after the Whirlpool emitter board is replaced?

Check that the emitter board is properly connected and aligned with the receiver board and that the infrared signal path is not blocked by an unintended obstruction. The ice level should also be checked.

Does the Whirlpool W10870822 Emitter Control Board qualify as an OEM replacement?

Yes. The W10870822 is an emitter control board used in the refrigerator ice maker system for compatible models.

What shipping period is available for the Whirlpool W10870822 Emitter Control Board for Refrigerator?

The Whirlpool Emitter Control Board for Refrigerator ships via Ground, with an estimated delivery time of 5–7 business days.
