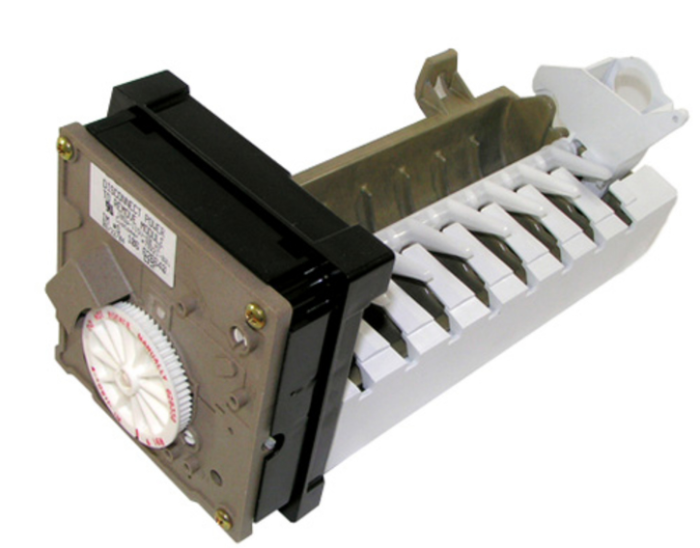

main product photo

Whirlpool D7824706Q Ice Maker Assembly for Refrigerator

Be the first to review this product
In stock
SKU
D7824706Q
Brand
Whirlpool
Whirlpool
Special Price $105.99 Regular Price $163.78
Ship to CACalculate Shipping Cost
Quick Overview
The Whirlpool D7824706Q Refrigerator Ice Maker Assembly automates the entire freezing, mold-heating, and extraction process for ice cube production inside the freezing compartment. This integrated mechanism receives freshwater via an external inlet valve, filling the multi-cube mold before activating internal heat strips to slightly loosen frozen cubes for ejection. The curie sweeps arms, then pushes the cubes forward into the storage bin below while monitoring bin levels via a shut-off bail arm. It mounts inside the upper freezer zone, serving as the self-contained production module managing specific water solidification cycles.

This Part Fits the Following Models (50)

Admiral 12500048 Ice Maker Admiral AS20M7A-DN02A Side-By-Side Refrigerator Admiral AS20M7A/DN02ASide-By-Side Refrigerator Admiral AS20M7DA Refrigerator Admiral AS20M7DV Refrigerator Admiral AS20M7W-DN01A Side-By-Side Refrigerator Admiral AS20M7W/DN01ASide-By-Side Refrigerator Admiral AS22M8A Refrigerator Admiral AS22M8DA-DN34A Side-By-Side Refrigerator Admiral AS22M8DA-DN34B Side-By-Side Refrigerator Admiral AS22M8DA-DN34C Side-By-Side Refrigerator Admiral AS22M8DA-DN34D Side-By-Side Refrigerator Admiral AS22M8DV-DN33A Side-By-Side Refrigerator Admiral AS22M8DV-DN33B Side-By-Side Refrigerator Admiral AS22M8DV-DN33C Side-By-Side Refrigerator
Showing 1-15 of 50
0
Rating:
0% of 100
Reviews
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Customer Questions
What does the Whirlpool D7824706Q Ice Maker Assembly for Refrigerator do?

The Ice Maker Assembly automates water filling, freezing, mould heating, cube release, and transfer into the freezer storage bin.

How does the Ice Maker Assembly produce ice cubes?

The Ice Maker Assembly fills its multi-cube mould with freshwater, freezes the contents, then uses internal heat strips to loosen formed cubes.

Where is the Whirlpool D7824706Q Ice Maker Assembly installed?

The Ice Maker Assembly mounts inside the upper freezer zone, where it manages the refrigerator’s dedicated ice-making cycles.

How does the Ice Maker Assembly release frozen cubes?

After freezing, internal heat strips slightly loosen the cubes before the sweep arms move them forward into the storage bin.

What controls ice production when the storage bin becomes full?

A shut-off bail arm monitors the storage bin level and helps control the ice-making cycle when sufficient cubes are present.

Which models are compatible with the Whirlpool D7824706Q Ice Maker Assembly for Refrigerator?

Listed compatibility includes Admiral 12500048 Ice Maker and Admiral AS20M7A-DN02A, AT15M4A-DA03A, AT15M4A-DA03C, and AT17M6W-DA26C refrigerators.

Is Whirlpool D7824706Q Ice Maker Assembly for Refrigerator an OEM replacement part?

Yes. The Whirlpool Ice Maker Assembly for Refrigerator is an OEM replacement part designed for compatible refrigerator applications.

What is the delivery time for the Whirlpool D7824706Q Ice Maker Assembly for Refrigerator?

The Whirlpool Ice Maker Assembly for Refrigerator has an estimated Ground shipping delivery time of 5–7 business days.
